Advanced Training for WLOADCTL: Job Control By Condition

Overview

The condition attribute is one of the most powerful properties in WLOADCTL job scheduling. Combined with WLOADCTL's built-in functions, it unlocks a huge range of sophisticated scheduling logic.

In this article, we will introduce:

1. Why WLOADCTL introduced the condition attribute

2. The core technical concepts behind using condition

3. The most important real-world use cases for condition

1. Why Does WLOADCTL Need a condition Attribute?

Rules are finite. Requirements are not.

WLOADCTL controls when and how a job runs through a variety of built-in properties, In previous articles, we already learnt about things like timingplan, maxnum, ignoreeer, period, lean, ostr. These properties cover a lot of ground, but in real business, things are more complicated. To handle this ever-changing control logic, WLOADCTL built a custom control mechanism through the condition attribute.

2. The Technical Fundamentals of condition

2.1 A First Look at condition Through Code

Let's start with a simple example:

<serial>
  <name>MainModul_SerialNode0</name>
  <sh>
    <name>job1</name>
    <progname>$TASKCTLDIR/demo/shell/job1.sh</progname>
    <jobdesc>Runs everyday</jobdesc>
  </sh>
  <!-- Relative to workdate1, runs every Mon, Tues, Thurs-->
  <sh>
    <name>job2</name>
    <progname>$TASKCTLDIR/demo/shell/job2.sh</progname>
    <condition>if(dayofweek() in (1,2,4)) CTL_DOIT else CTL_IGN</condition>
    <jobdesc>Runs every Mon, Tues, Thurs</jobdesc>
  </sh>
  <sh>
    <name>job3</name>
    <progname>$TASKCTLDIR/demo/shell/job3.sh</progname>
    <condition>if(execcmd('sh $HOME/myshell/myselfcondition.sh')==0) CTL_DOIT else CTL_WAIT</condition>
    <jobdesc>Wait myselfcondition.sh</jobdesc>
  </sh>
  <sh>
    <name>job4</name>
    <progname>$TASKCTLDIR/demo/shell/job4.sh</progname>
    <jobdesc>Runs everyday</jobdesc>
  </sh>
</serial>

Here's what's happening, step by step:

• Dependency chain: job1 → job2 → job3 → job4. All four jobs sit inside a single serial group, so by default they run one after another, each depending on the previous one finishing.

• job2's condition: Once job1 completes, control passes to job2 — but job2 carries a condition. If the current day is Monday, Tuesday, or Thursday, it runs; otherwise it's simply skipped.

• job3's condition: After job2 finishes (or is skipped), control passes to job3, which also has a condition. job3 only runs once the custom script myselfcondition.sh executes and returns 0. Until then, the job — and the whole flow — sits blocked, waiting.

• job4: Once job3 completes, job4 finally runs.

In this example, execcmd is a built-in function that executes a shell command and captures its return value. CTL_DOIT, CTL_IGN, and CTL_WAIT are WLOADCTL keywords used specifically within condition expressions.

2.2 The Basic Syntax of condition

(1) Core structure:

if ([Statement]) [Expression1] else [Expression2]

(2) Keyword actions

Inside the if / else structure of a condition, there are four primary keyword actions:

• CTL_DOIT — Execute the current job.

• CTL_IGN — Ignore the current job (skip it, but treat it as successfully passed).

• CTL_WAIT — Wait (don't execute yet, and don't mark it as passed).

• CTL_FAIL — Mark execution as failed.

3. Key Use Cases for condition

condition is a fully customizable job control strategy with a wide range of applications. Below are three of the most common scenarios:

1. Controlling the triggering condition at the start of a workflow.

2. Controlling conditional branching within a workflow.

3. Implementing complex run control for standalone jobs.

3.1 Controlling the Start-Trigger Condition of a Workflow

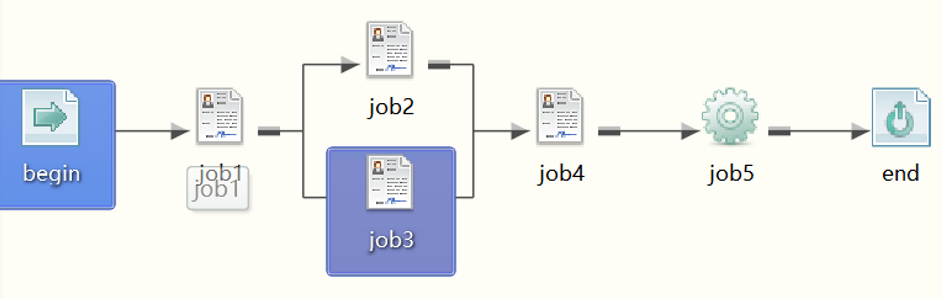

Suppose you've defined a business sub-flow called mysubflow1:

But when, and under what condition, should this sub-flow run each day? Considering a requirement: the flow should only run once a specific flag field in a specific database table reaches a certain value.

To handle this, we define a Main Flow that leverages the condition feature to implement the requirement. Here's how:

Because the triggering condition is highly specific to this business case, we first write a custom script, myctl.sh. This script's job is simply to check the database condition: if the condition is satisfied, it exits with 0; otherwise, it exits with 1.

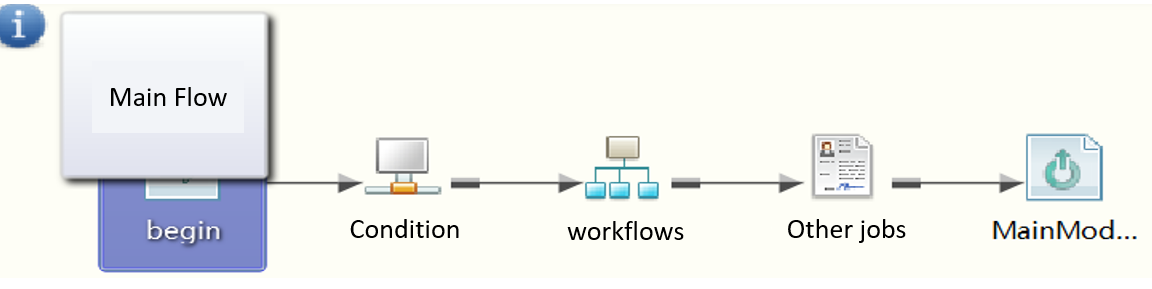

Next, we create a Main flow:

The code corresponding to this master control flow looks like this:

<serial>
  <name>root</name>
  <begin>
    <name>begin</name>
  </begin>
  <!-- Use a nulljob (empty job node) to control triggering -->
  <nulljob>
    <name>startctlnode</name>
    <condition>if(execcmd('sh $HOME/myctl.sh') == 0) CTL_DOIT else CTL_WAIT</condition>
    <jobdesc>My start trigger control</jobdesc>
  </nulljob>
  <!-- Calls my specific business sub-flow -->
  <flow>
    <name>callmyflow</name>
    <progname>mysubflow1</progname>
    <jobdesc>Call my business flow</jobdesc>
  </flow>
  <sh>
    <name>backdeal</name>
    <progname>$HOME/backdeal.sh</progname>
    <jobdesc>Do some follow-up processing</jobdesc>
  </sh>
  <end>
    <name>MainModul_endjob</name>
  </end>
</serial>

Here, startctlnode is a nulljob that gate execution. As long as myctl.sh doesn't return 0, the flow stays in CTL_WAIT and nothing downstream runs. The moment the database meet the condition, the gate opens, callmyflow triggers the actual business sub-flow mysubflow1, and backdeal.sh runs afterward for any follow-up processing.

3.2 Controlling Conditional Branches in a Workflow

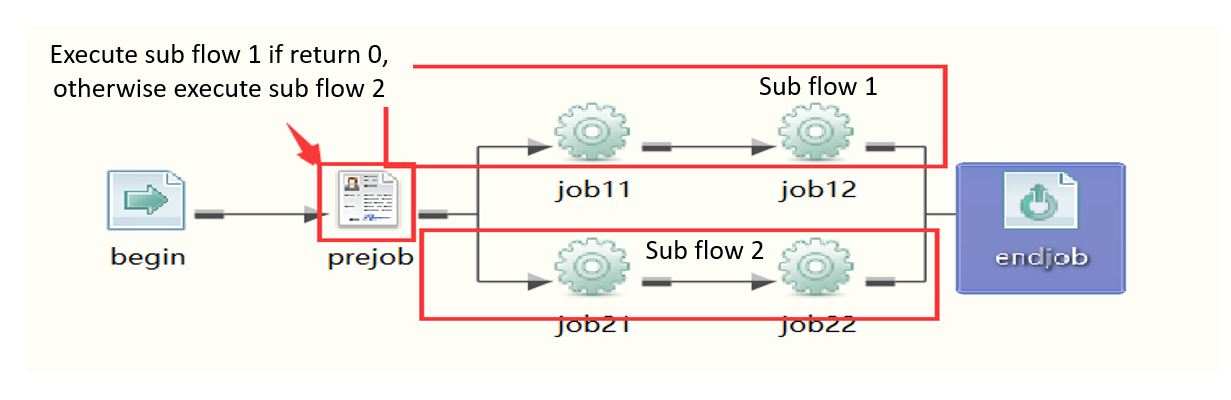

Step 1: Understand the branching requirement visually

Step 2: The corresponding design code

<serial>
  <name>condition_app1</name>
  <sh>
    <name>prejob</name>
    <progname>$TASKCTLDIR/demo/shell/branchctl1.sh</progname>
    <para>$(retvalue)</para>
    <!-- Redefine return values: both 0 and 1 are counted as success -->
    <successv>0-1</successv>
    <errorv>2-98</errorv>
    <warningv>99</warningv>
  </sh>
  <parallel>
    <name>allbranch0</name>
    <!-- Branch 1 -->
    <serial>
      <name>branch1</name>
      <!-- getjresult is a built-in function that retrieves the job's return value -->
      <condition>if(getjresult('prejob')==0) CTL_DOIT else CTL_IGN</condition>
      <exe>job11</exe>
      <exe>job12</exe>
    </serial>
    <!-- Branch 2 -->
    <serial>
      <name>branch2</name>
      <!-- Run only if equal to 1, otherwise skip this branch -->
      <condition>if(getjresult('prejob')==1) CTL_DOIT else CTL_IGN</condition>
      <exe>job21</exe>
      <exe>job22</exe>
    </serial>
  </parallel>
</serial>

Here's the logic in plain terms:

• prejob runs branchctl1.sh and captures its return value via $(retvalue). Its success ranges from [0,1] (successv = 0-1), while 2-98 is treated as an error and 99 as a warning.

• allbranch0 is a parallel container holding two branches, branch1 and branch2, which are evaluated simultaneously.

• branch1 only fires (CTL_DOIT) if getjresult('prejob') == 0; otherwise it's ignored (CTL_IGN). getjresult is a built-in function used to fetch a previously run job's return value.

• branch2 only fires if getjresult('prejob') == 1; otherwise this branch is skipped entirely.

This pattern makes a single upstream job's return value cleanly steer execution down one of several parallel paths — a classic branching pattern for workflows that need different downstream handling depending on an earlier result.

3.3 Complex Run Control for Standalone Jobs

Beyond triggering entire workflows or driving conditional branches, condition is also frequently used for finer control of individual jobs. In fact, the two jobs (job2 and job3) shown in the very first example in this article are exactly this kind of use case: a day-of-week gate and a wait-on-external-signal gate, both applied directly to a single job rather than an entire flow.

Conclusion

The condition property makes WLOADCTL more programmable. Whether you need to control the entire workflow based on database flags, split execution into conditional branches based on upstream results, or add custom logic to individual jobs, when the condition property is used in conjunction with built-in functions, the process becomes more flexible and capable of meeting most of practical scheduling requirements.

You can try to write a condition statement on a demo in our Official Website
